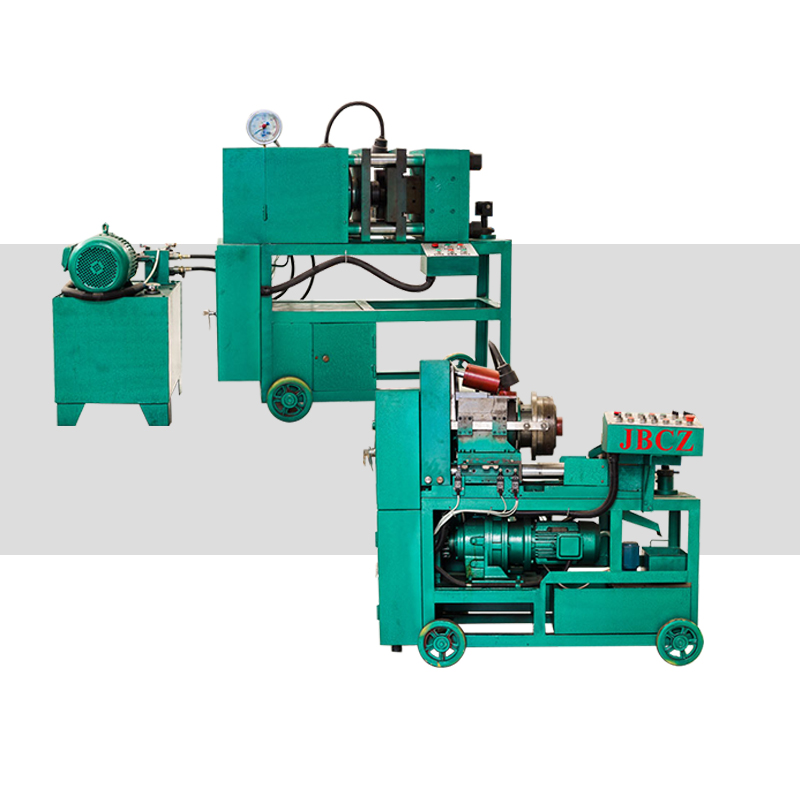

JB-2014 Automatic Upset Forging Parallel Thread Machine
From 2006 until now, the champion of sales machine,annual production capacity is 300 sets.
- Overview
- Related Products

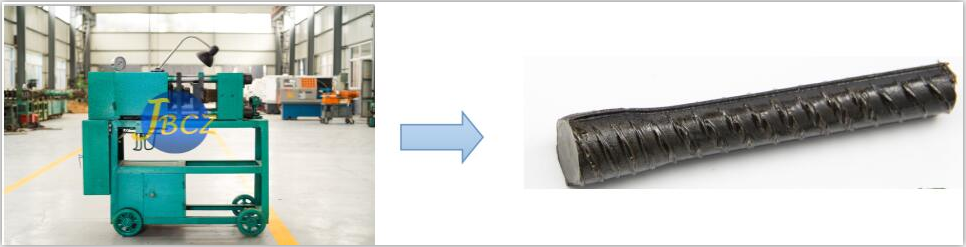

1. Rebar end upset forging machine
First step, Cold forging the end of rebar , the principle of enlarge the end of rebar , I Make the molecular structure more tight, II enlarge the cross sectional area of rebar (These two design principle make the tensile strength of rebar end more stronger)
The machine process the rebar diameter range: from 12mm to 40mm

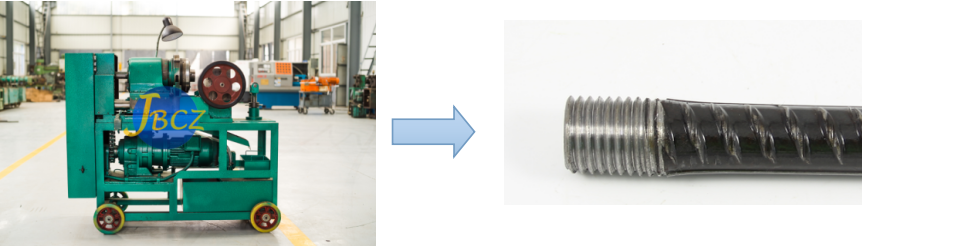

2. Rebar threading machine
Make thread on the end of rebar which has been enlarged, the thread size matches rebar coupler connection, the range of machine processing rebar: 12mm-40mm
3.Process the thread well, finish two steel bars connection within 30 seconds.
Product parameters ：
Name |
Working range |
Motor power(kw) |
Net weight(kg) |
Packing size(mm) |
|
JB-2014 Automatic machine end upset forging
|
12mm-40mm |
7.5 |
810 |
1320*740*1470 |
|
JB-2014 Automatic threading machine |
12mm-40mm |
3/2.4 |
814 |
1450*1130*1400 |
Oil pump |
/ |
2.2 |
256 |
750*500*900 |
|
|
|
|
|
