Reducing Coupler-Rib Peeling Type
*Rebar connection range: from 12mm to 40mm, equal to #4 to #12 British rebar size.
*We can also customize the coupler size according to your needs
- Overview
- Related Products
- Practical and economical alternative to laps.
- Simple process : Only one machine, one operator.
- Fast cycle time : less than 40seconds per thread !
- One standard coupler for all splicing requirements (Standard/Position).
- Easy installation, no torque wrench required.
- Shortens construction cycle times.
- Manufactured under strict quality assurance plan ISO 9001 and ASME. Third party tested.
- Full traceability of material origin and production batch.
Features:

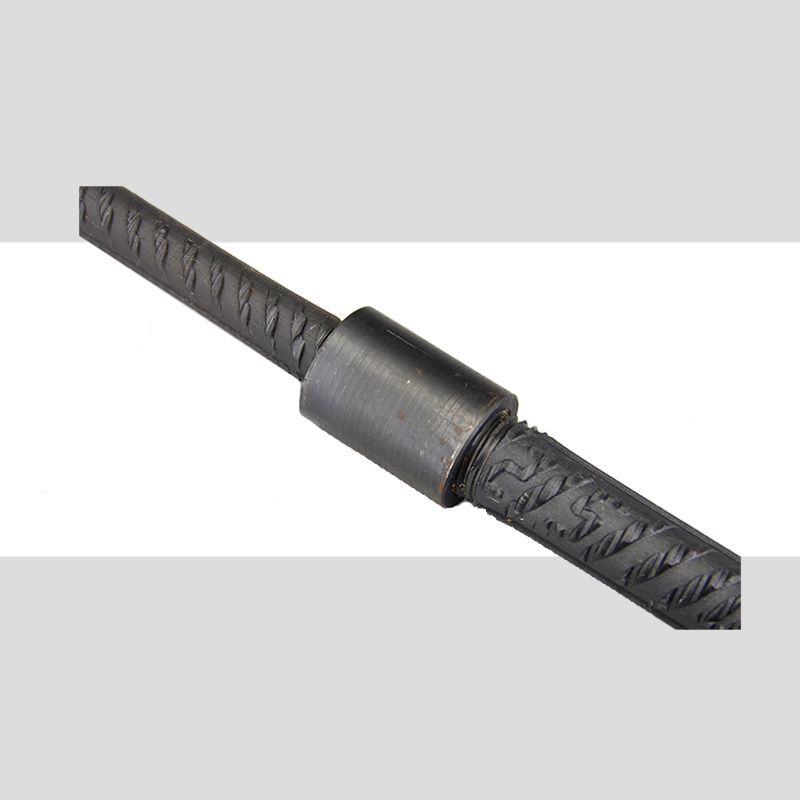

Most suitable to connect two different size rebars.
When storey connected, there may require to connect different sizes of rebars due to the design requirements. For example, the rebar used in basement is 32mm, but for the storey is 25mm, so how to connect this two different size rebars? JBCZ customize and design reducing coupler for clients which can easily solve this problem.
Operation Video:
Advantage:
Installation guide：

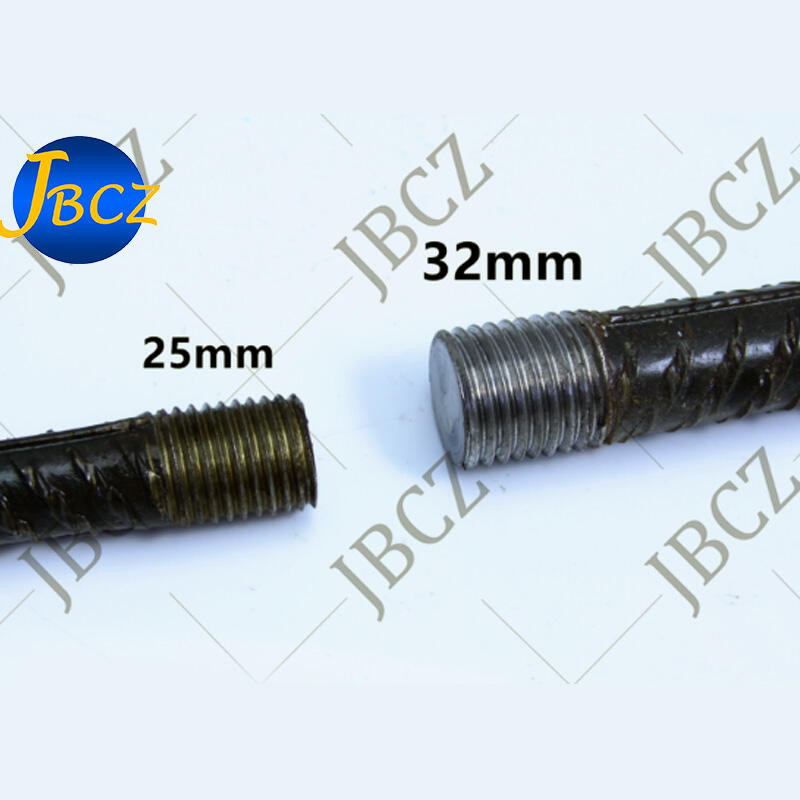

Such as one rebar is 32mm and the other is 25mm, then process thread on the forged bar end.

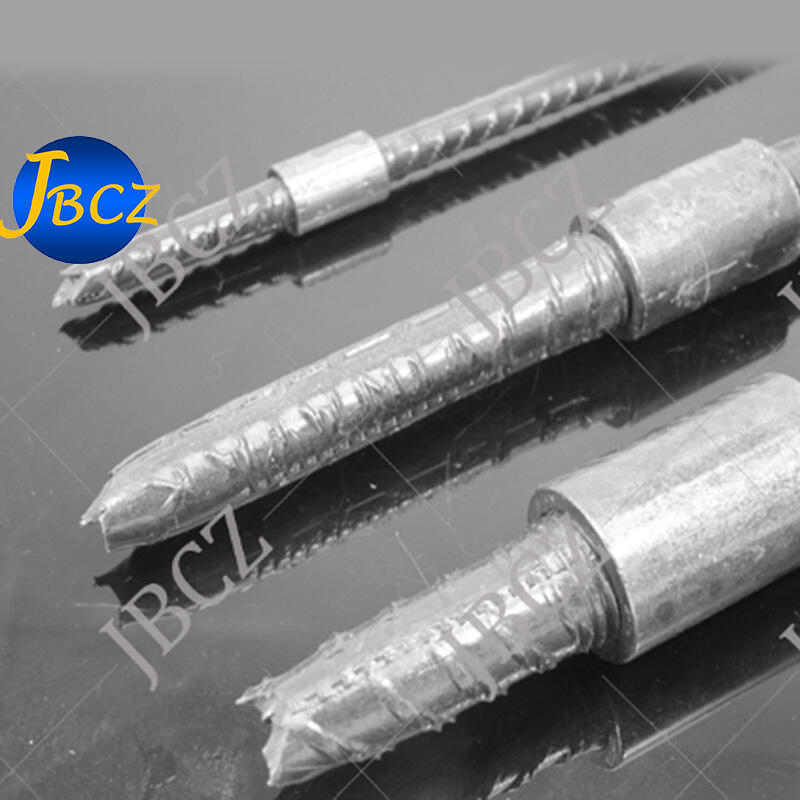

1. Peeling:The end of the reinforcing bar is peeled.
2.Roll threading:The peeled end of the reinforcing bar is then threaded by rolling.
3. JBCZ customized reducing coupler, 50% of the thread is 32mm, and the other 50% is 25mm to match the rebar size above.

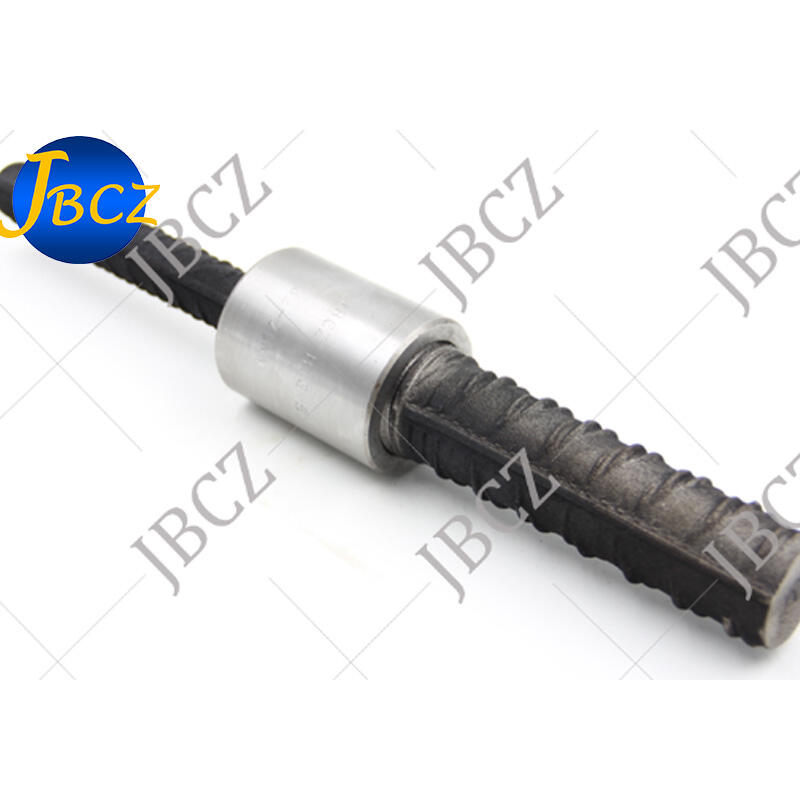

4. to connect two rebars normally, the connection process can be finished within 35 seconds.
