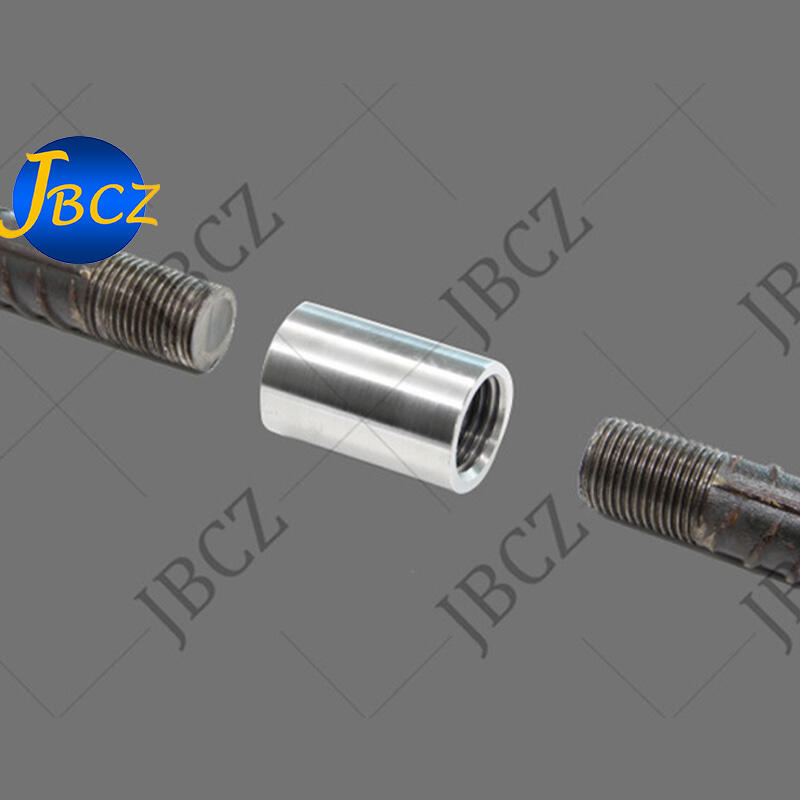

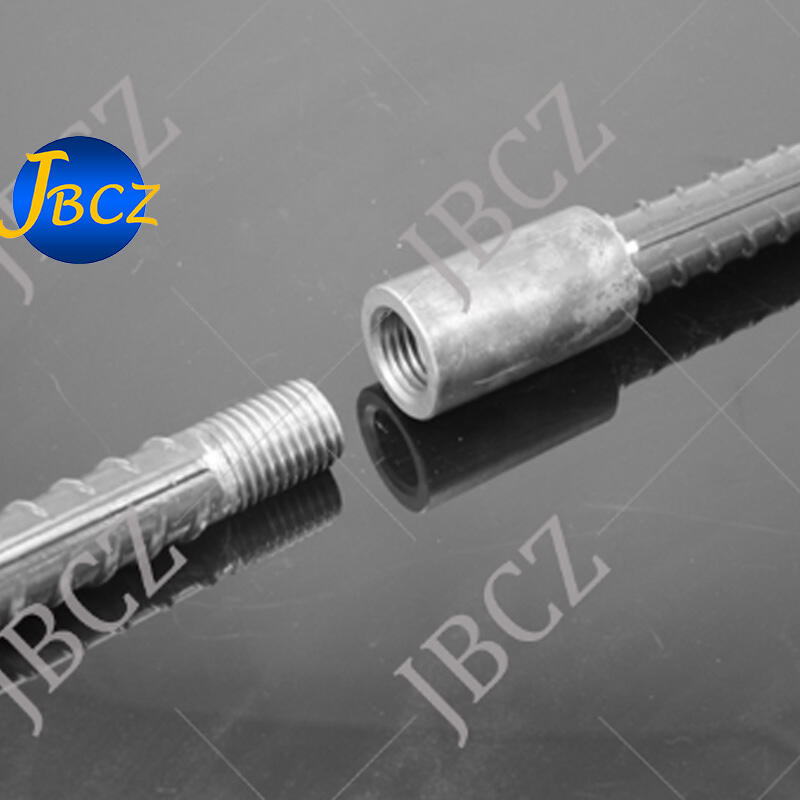

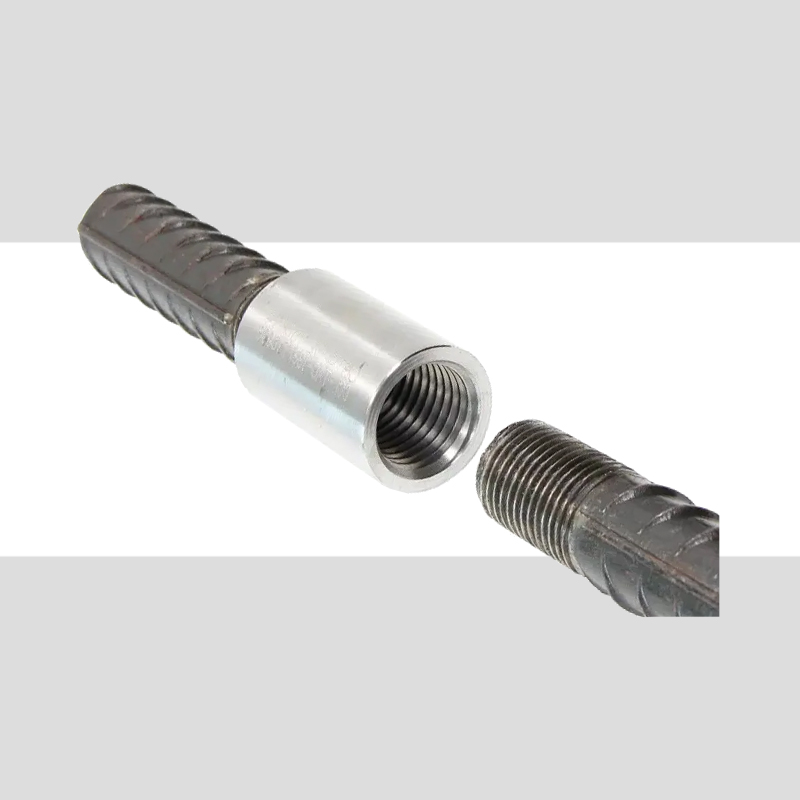

Rib Peeling and Rolling Thread Coupler
*Rebar connection range: from 12mm to 40mm, equal to #4 to #12 British rebar size.
*We can also customize the coupler size according to your needs
- Overview
- Related Products
- Practical and economical alternative to laps.
- Simple process : Only one machine, one operator.
- Fast cycle time : less than 40seconds per thread !
- One standard coupler for all splicing requirements (Standard/Position).
- Easy installation, no torque wrench required.
- Shortens construction cycle times.
- Manufactured under strict quality assurance plan ISO 9001 and ASME. Third party tested.
- Full traceability of material origin and production batch.
Features:
Is parallel thread splicing system which is designed for Ø16 to Ø40mm（ASTM #5 to #12）rebar conneciton. Designed and produced in compliance with Eurocode 2, BS 8110, DIN 1045, ACI 318, IBC, AASHTO, ASME Sec III Div 2.
Operation Video:
Advantage:
Installation guide：
1. Peeling:The end of the reinforcing bar is peeled.

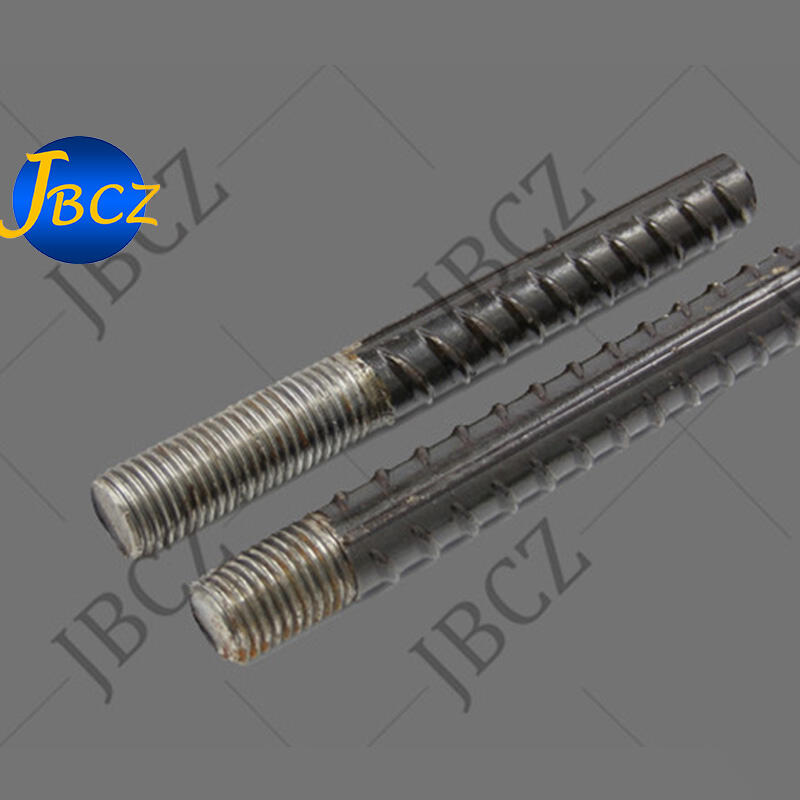

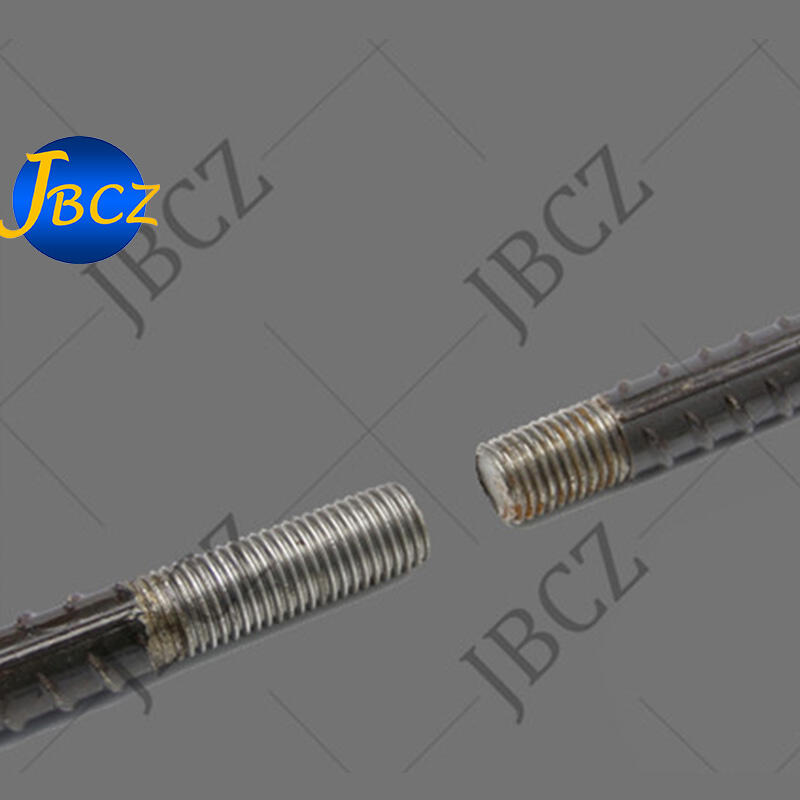

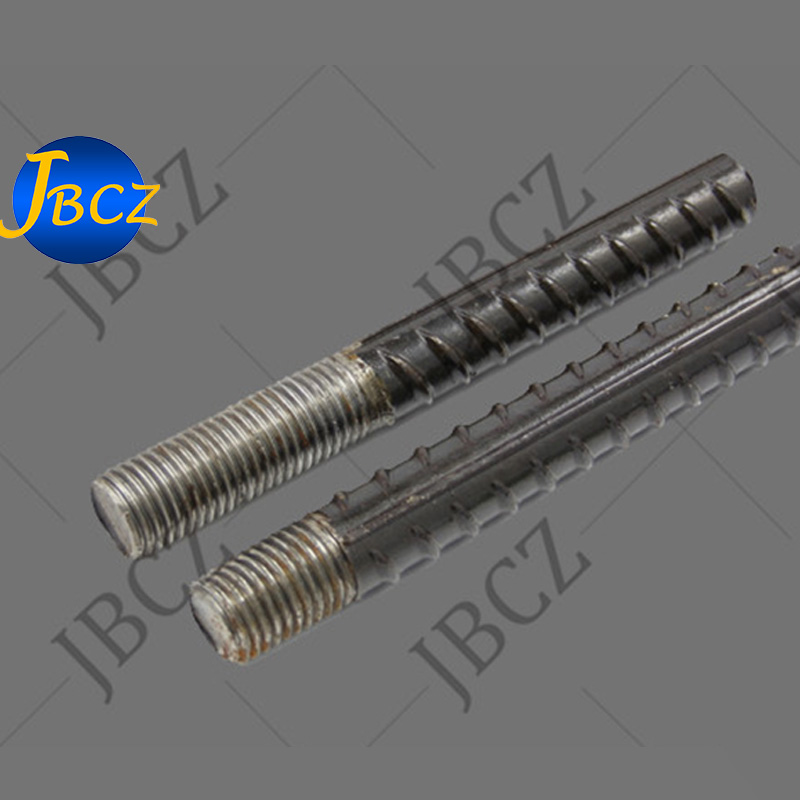

2.Roll threading:The peeled end of the reinforcing bar is then threaded by rolling.
Product parameters:
Size(mm) |
Outer Dia.(mm) |
Length(mm) |
Thread pitch(mm) |
Tensile strength(MPa) |
Yield strength(MPa) |
16 |
25 |
45 |
2.5 |
620MPa-750MPa |
400MPa-550MPa |
18 |
28 |
50 |
2.5 |
||
20 |
30 |
55 |
2.5 |
||
22 |
32 |
60 |
2.5 |
||
25 |
38 |
65 |
3.0 |
||
28 |
42 |
70 |
3.0 |
||
32 |
48 |
80 |
3.0 |
||
36 |
54 |
90 |
3.0 |
||
40 |
59 |
95 |
3.0 |
