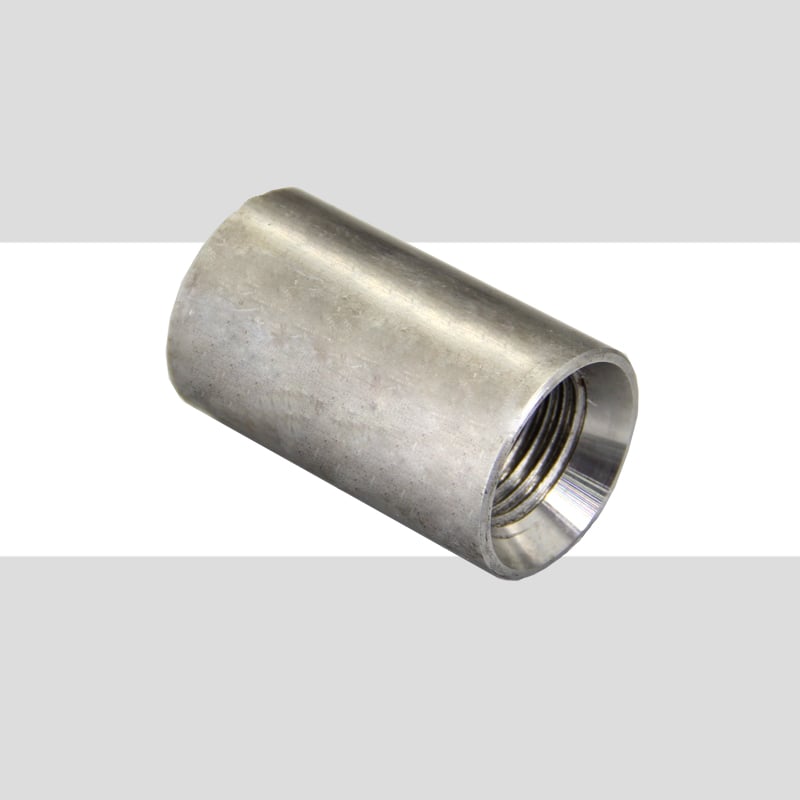

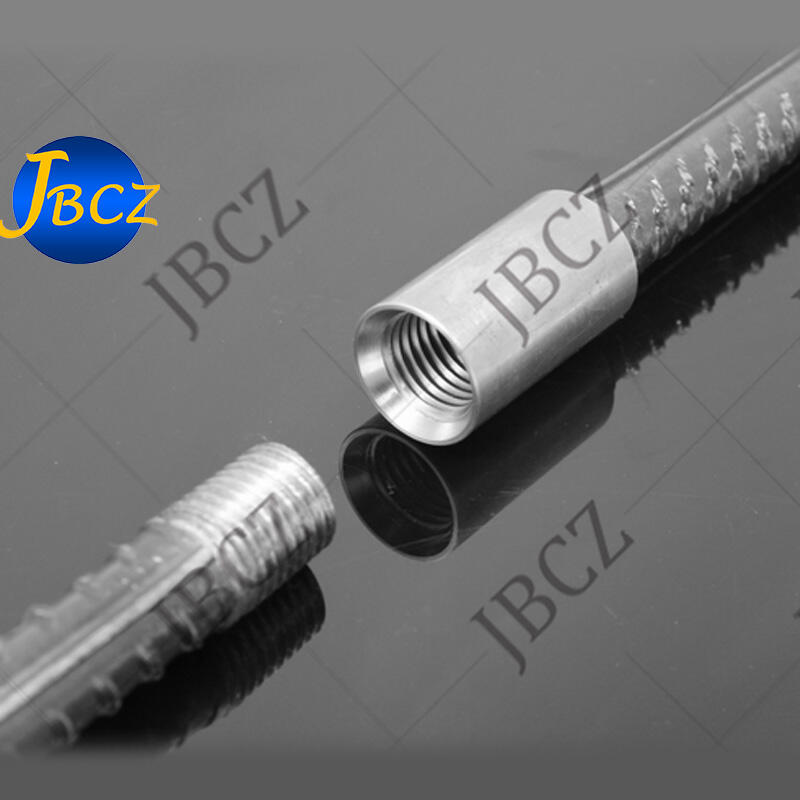

Type 2 Large Chamfering Flaring Connection
JBCZ is a professional manufacturer of upset forging parallel thread splice coupler and rebar threading machine.
*Rebar connection range: from 12mm to 40mm, equal to #4 to #12 British rebar size.
- Overview
- Related Products
- No reducing of rebar cross sectional area
- Pass elongation test .
- Easy installation , no need torch wrench.
- one coupler can meet all connection requirement
- Manufactured under ISO 9001 standard and same strict quality guarantee.Tested by third party.
- Full traceability of raw material and production batch.
- Tested under several cyclic situation
- No bar conjunction problem happen.
- No large quantity of bars required.
- It can pass below test :
- 0.5 million times -coupler fatigue test,
- 1.5 million times-coupler fatigue test,
- 2 million times-coupler fatigue test,
- 3.5 million times-coupler fatigue test, coupler fatigue test

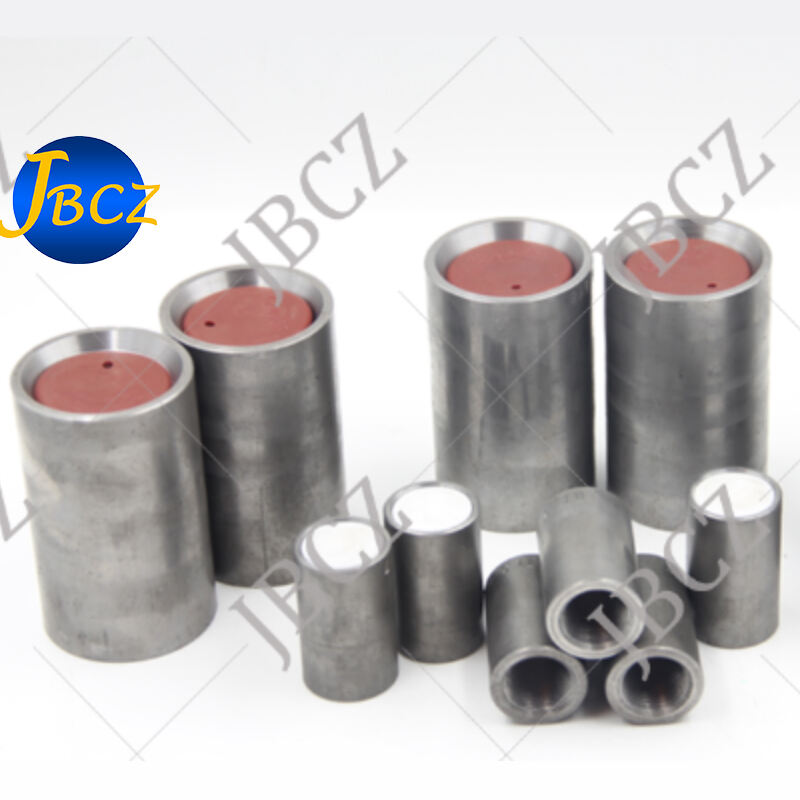

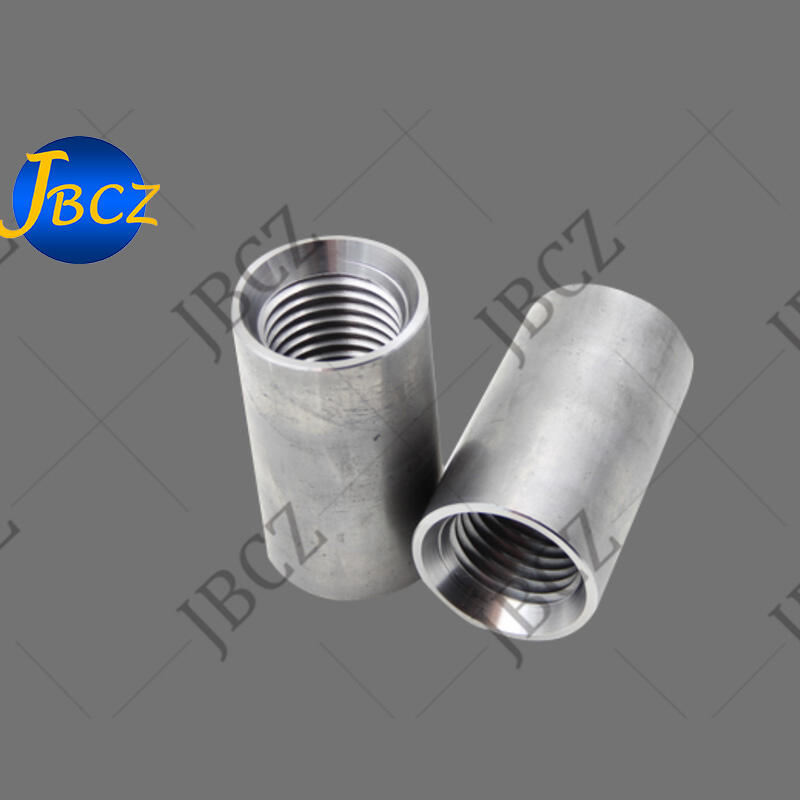

Features:Large expansion sleeve, the production requirements of this coupler are very high, especially the processing of large expansion, the expansion processing must be fully automatic CNC processing, 100% in line with the European steel bar connection coupler production standards.

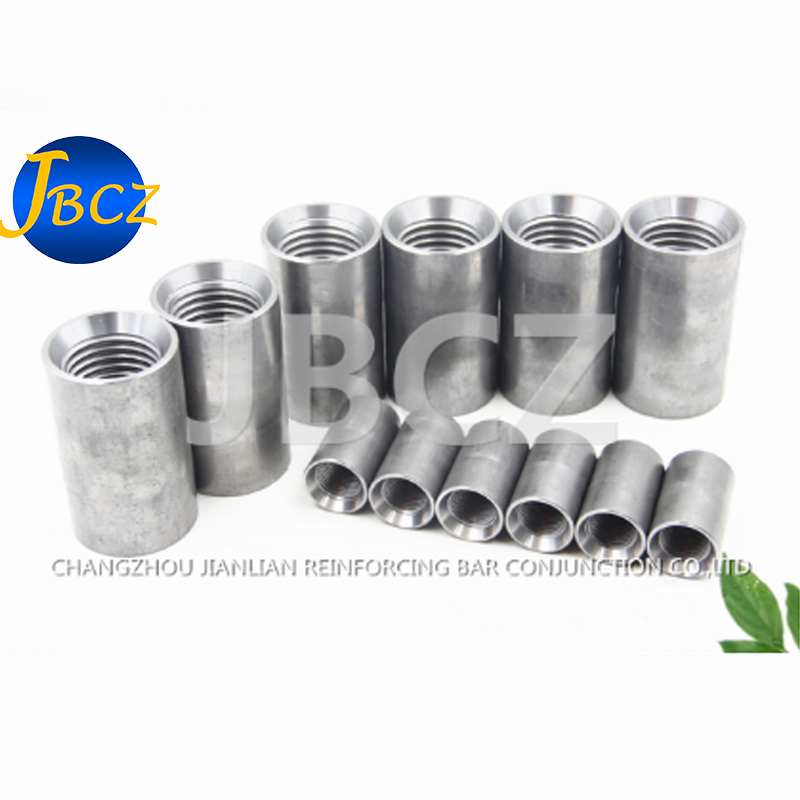

Coupler specifications are 12mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 32mm, 34mm, 36mm, 40mm
Advantages:
Installation guide
1. Cutting
one end of reinforcing bar is cutting sawn square
2.Cold forging
The sawn end of rebar is enlarged by a patented cold forging machine, the core diameter of the bar is increased to a pre-determined diameter.
3.Threading
At last, make thread on the end of the bar which has been enlarged.
Product parameters:
Diameter of steel bar(mm) |
Outer Diameter of coupler(mm) |
Inner diameter of coupler(mm) |
Length of coupler(mm) |
Dimension of thread(mm) |
12 |
20 |
11.9 |
30 |
M14*2.0 |
14 |
22 |
13.9 |
34 |
M16*2.0 |
16 |
26 |
17.4 |
40 |
M20*2.5 |
18 |
29 |
19.4 |
44 |
M22*2.5 |
20 |
32 |
20.9 |
48 |
M24*3.0 |
22 |
36 |
23.9 |
52 |
M27*3.0 |
25 |
40 |
26.3 |
60 |
M30*3.5 |
28 |
44.5 |
29.3 |
66 |
M33*3.5 |
32 |
50 |
31.8 |
72 |
M36*4.0 |
36 |
56 |
34.8 |
80 |
M39*4.0 |
40 |
62 |
40.3 |
90 |
M45*4.0 |
Application projects

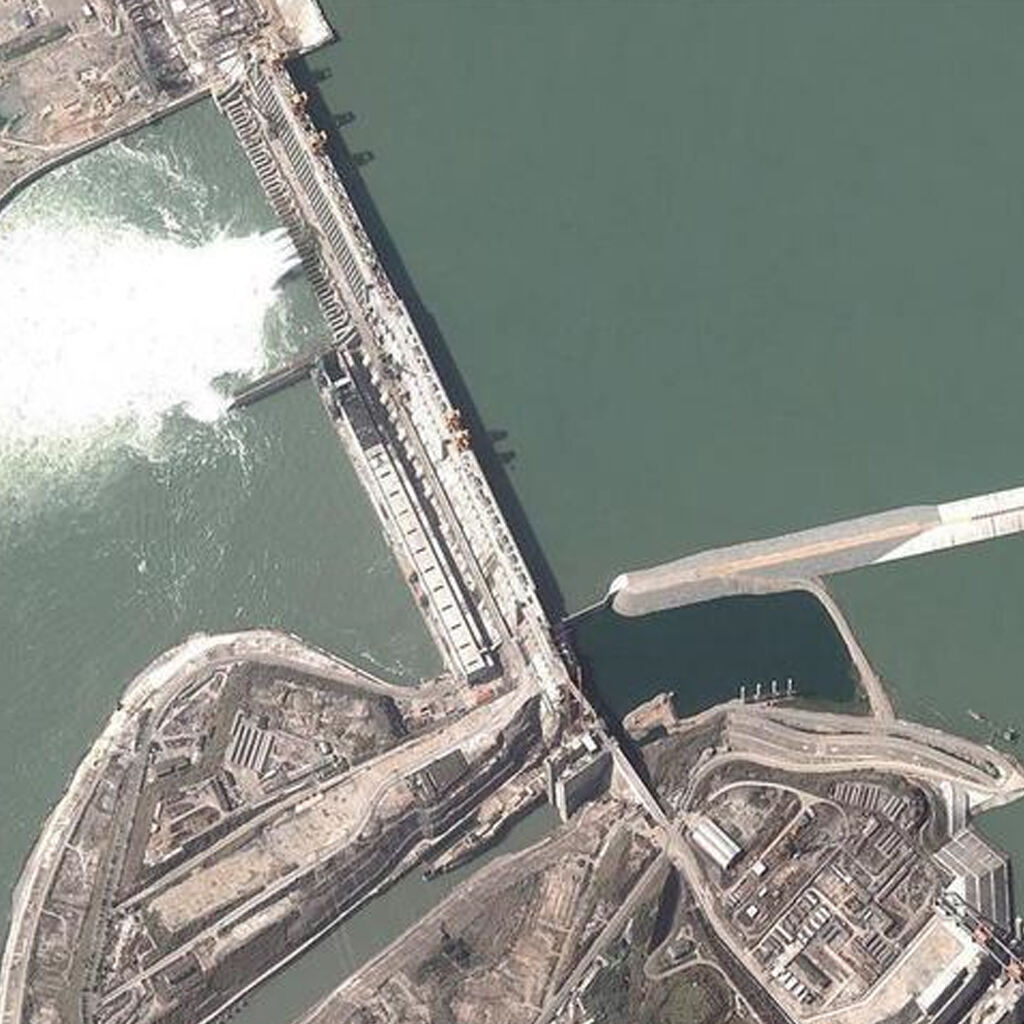

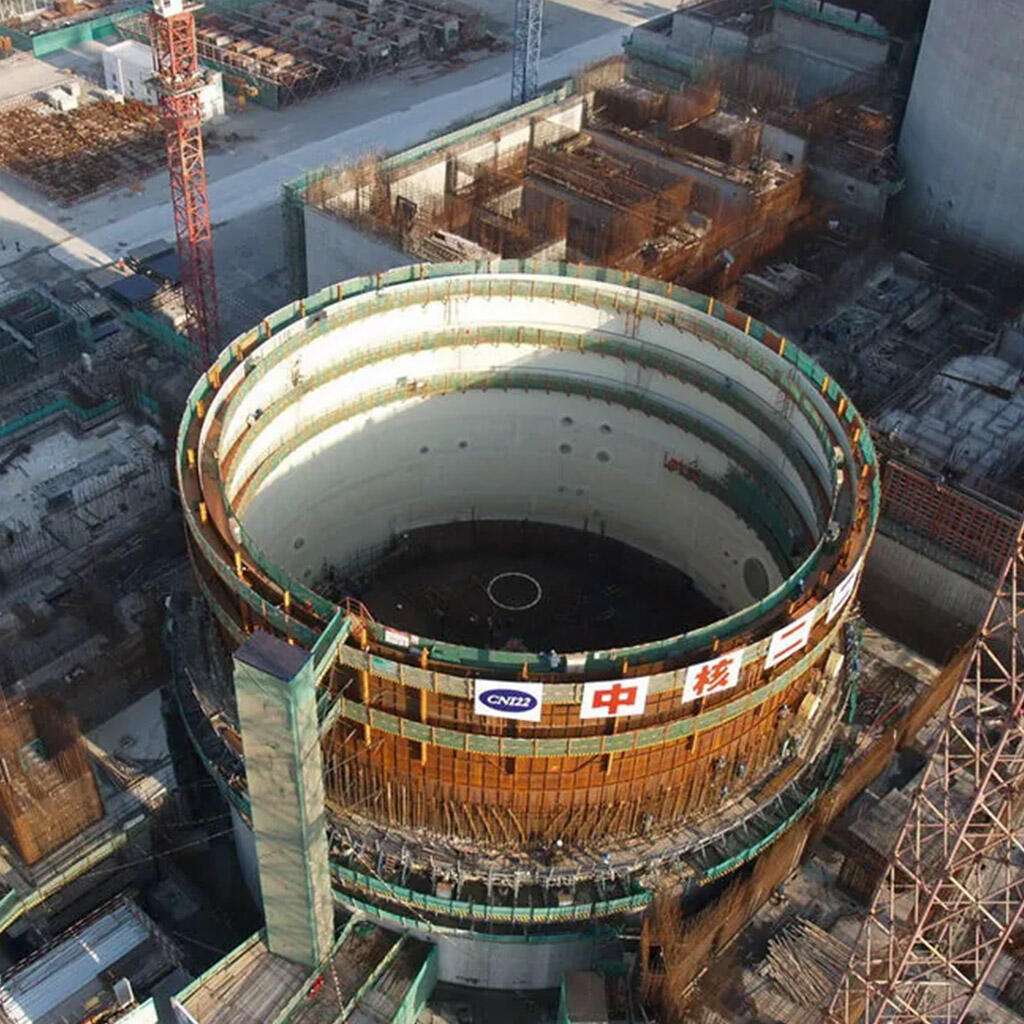

Our products can applied to bridge rebar splice, Nuclear power engineering rebar splice, Seawater desalination rebar connection, LNG project rebar splice, Metro rebar connection, High tower rebar connection, Viaduct rebar connection and etc.
 |
 |
 |
