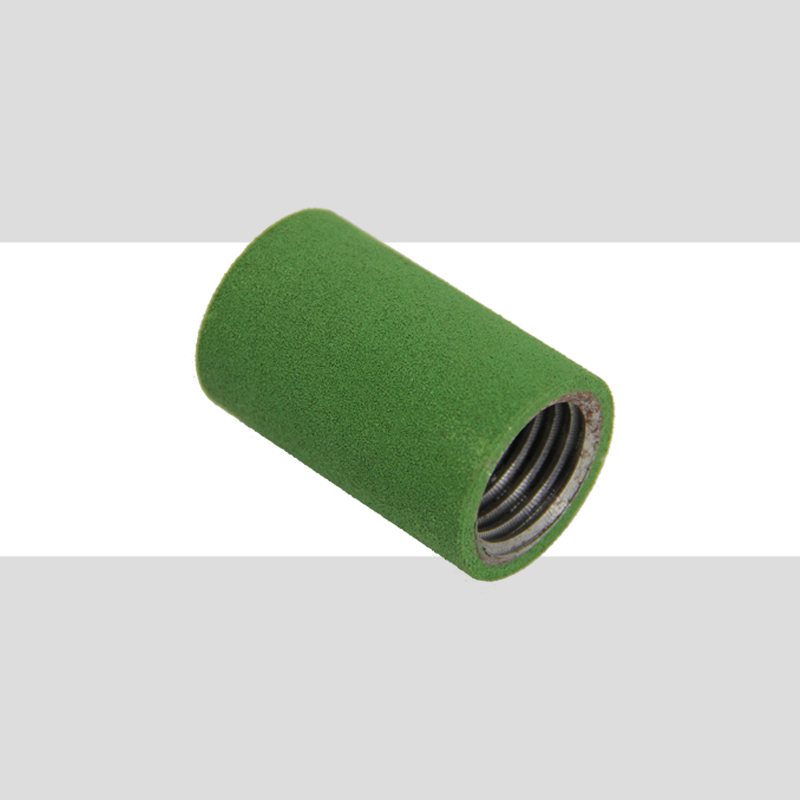

Epoxy Coupler(anti-rust)
JBCZ is a professional manufacturer of upset forging parallel thread splice coupler and rebar threading machine.
*Rebar connection range: from 12mm to 40mm, equal to #4 to #12 British rebar size.
- Overview
- Related Products
- Anti-rust and anti-corrosion, effectively extending the service life of the project

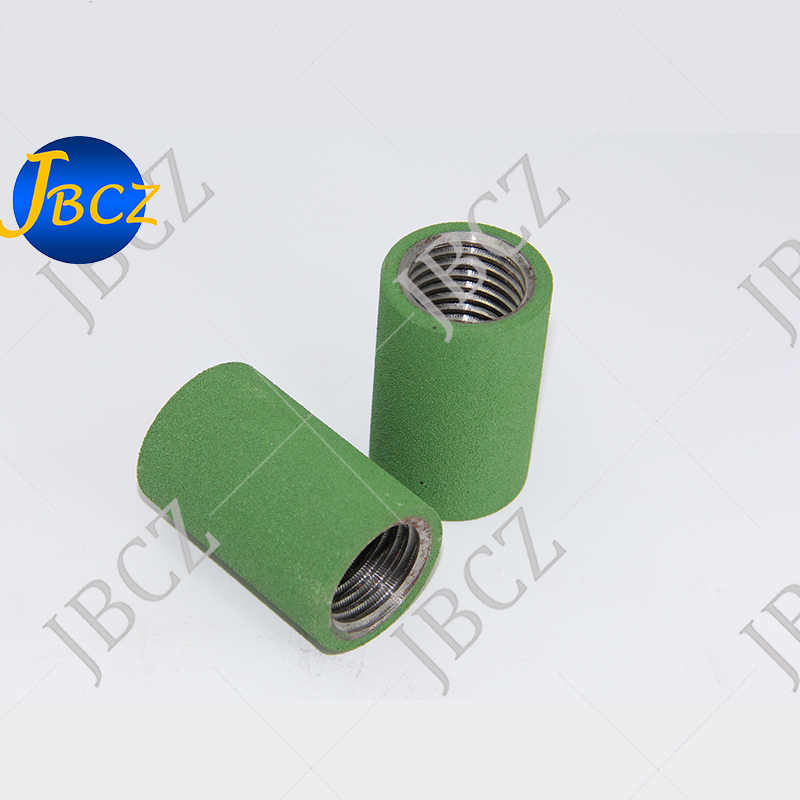

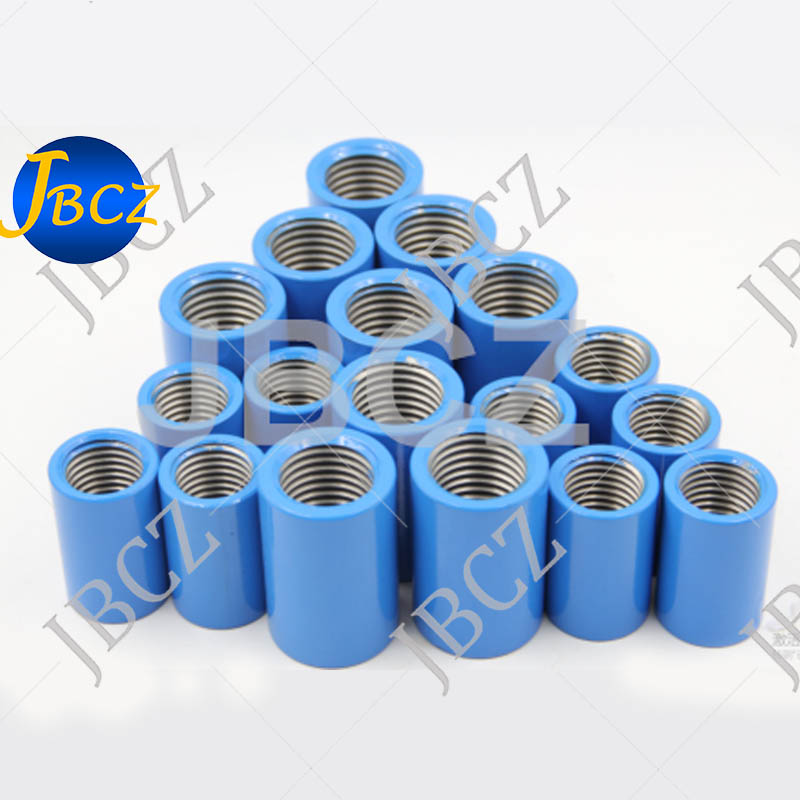

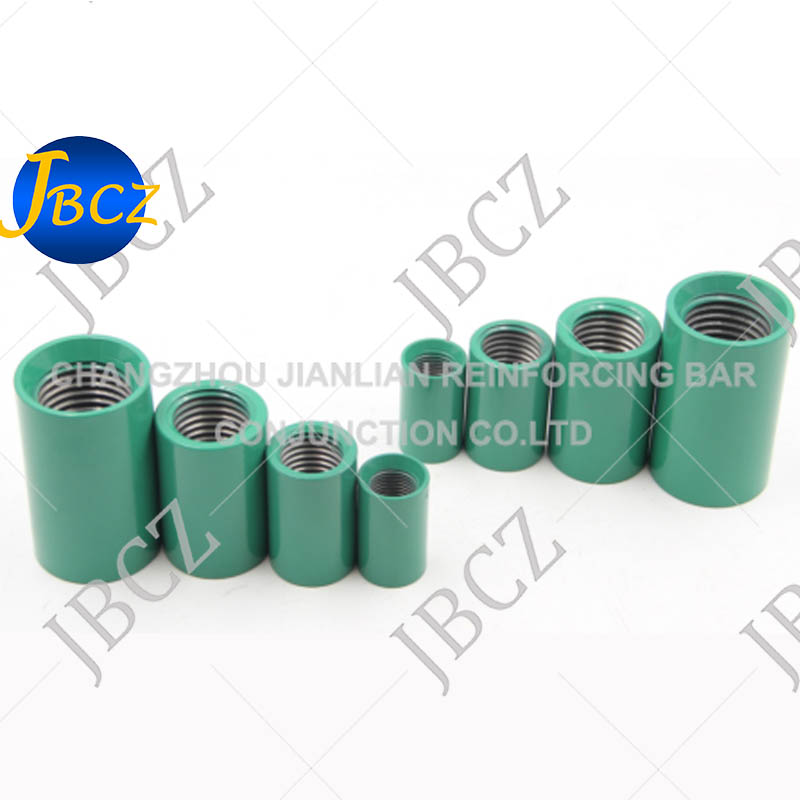

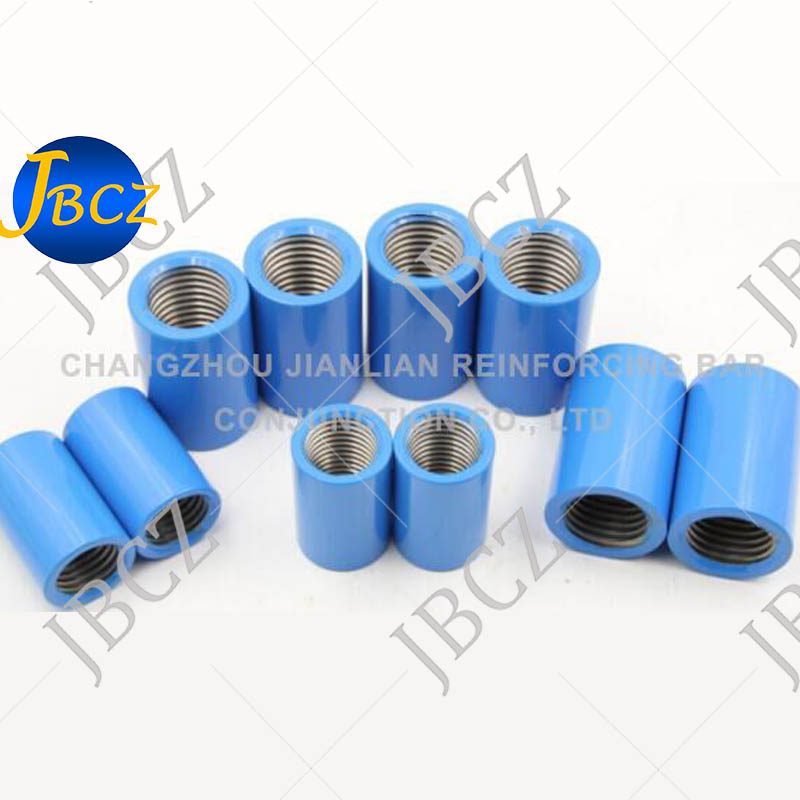

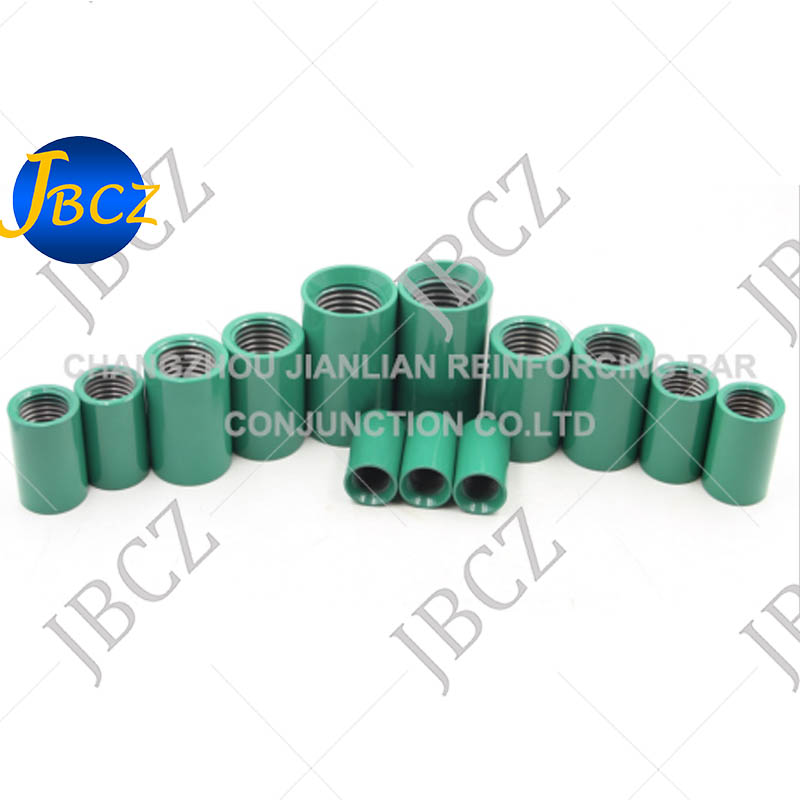

- The color of the coupler can be determined according to the needs of the customer, generally there are two colors: blue and green
Features:

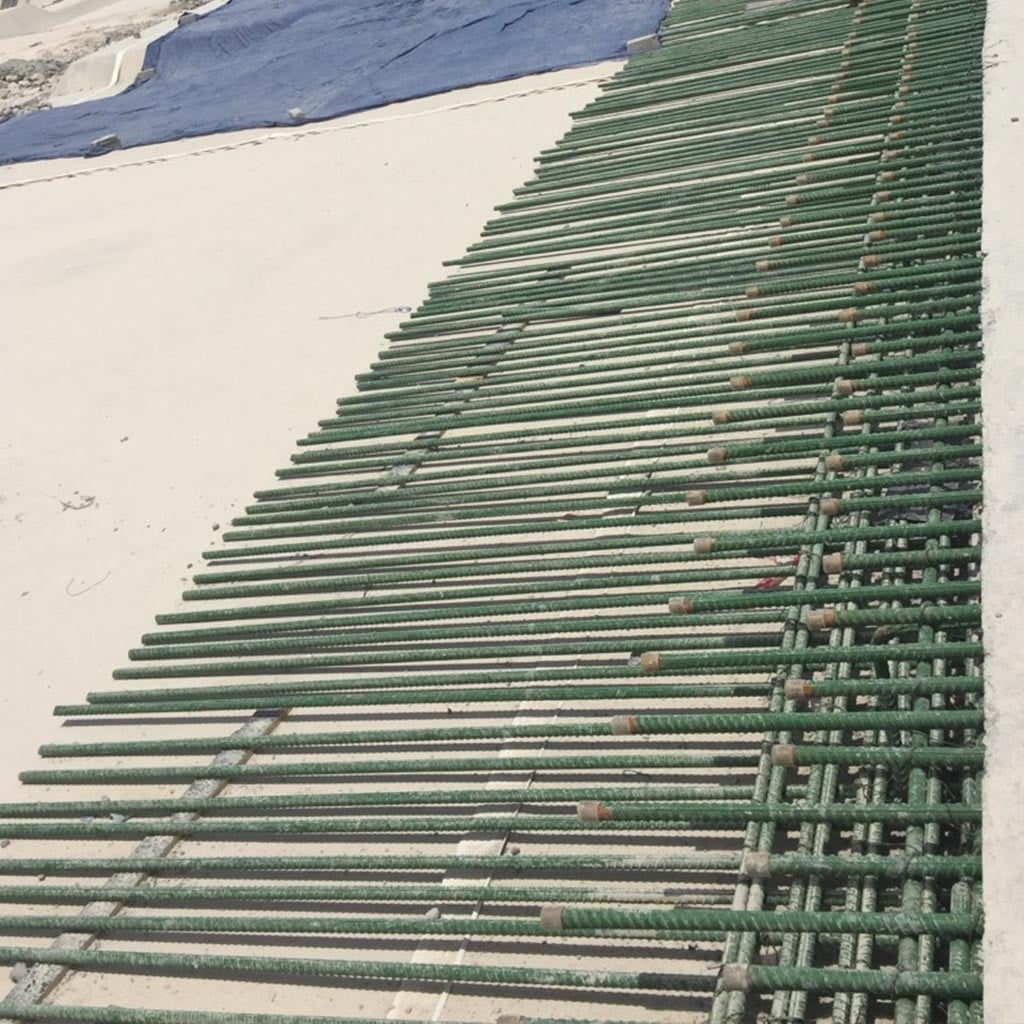

Suitable for Gulf projects, with super strong protection against rust and corrosion. Best match with epoxy greased steel bars.
Is a parallel thread splicing system which is designed for Ø12 to Ø40mm（ASTM #4 to #8）rebar connection. Designed and produced in compliance with Eurocode 2, BS 8110, DIN 1045, ACI 318, IBC, AASHTO, ASME Sec III Div 2
They are UK CARES rebar couplers, TA1-A test rebar coupler, TA1-B test rebar coupler, AFCAB rebar coupler, ISO15835 rebar coupler, Bartec coupler ,DCL approved rebar coupler, Slip test rebar coupler.
Operation Video:https://youtu.be/bBDOoRsursc
Advantages:
Installation guide
1. Cutting
one end of reinforcing bar is cutting sawn square
2.Cold forging
The sawn end of rebar is enlarged by a patented cold forging machine, the core diameter of the bar is increased to a pre-determined diameter.
3.Threading
At last, make thread on the end of the bar which has been enlarged.

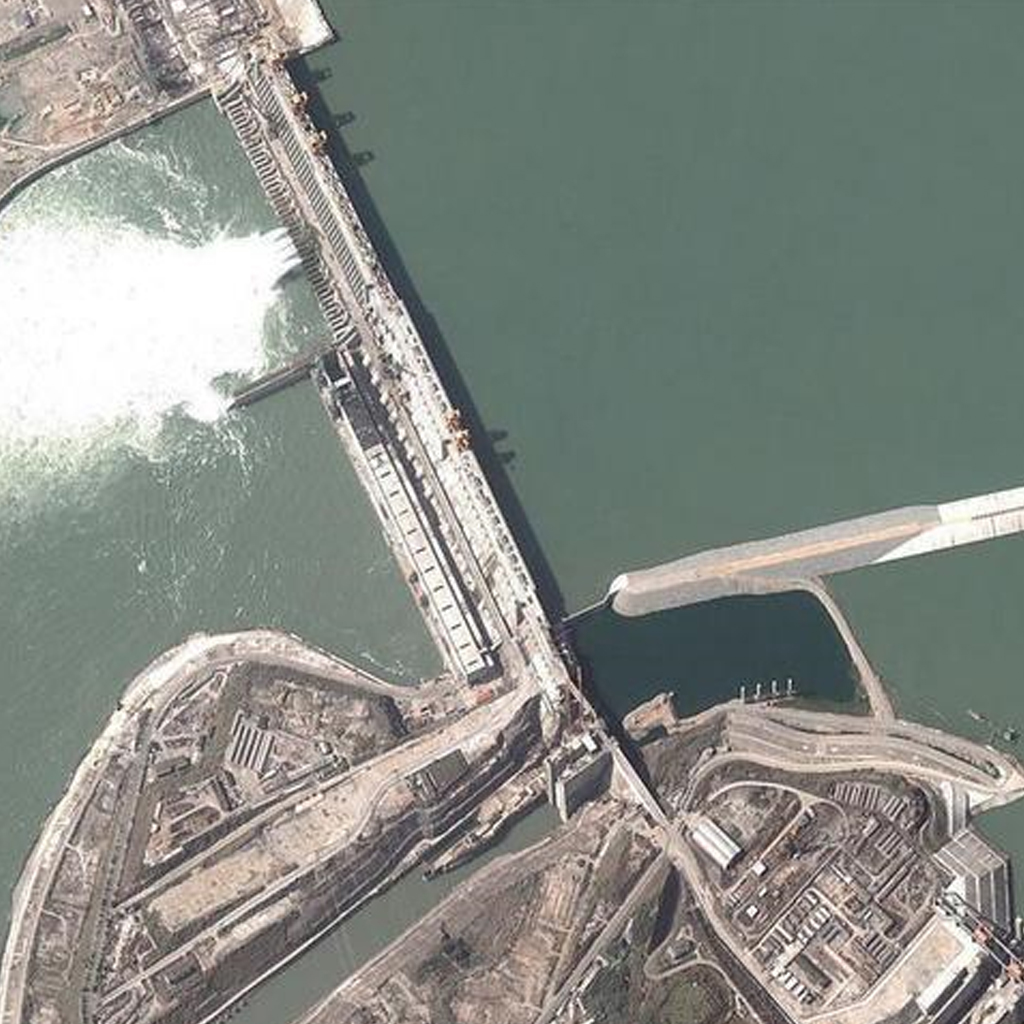

Application projects

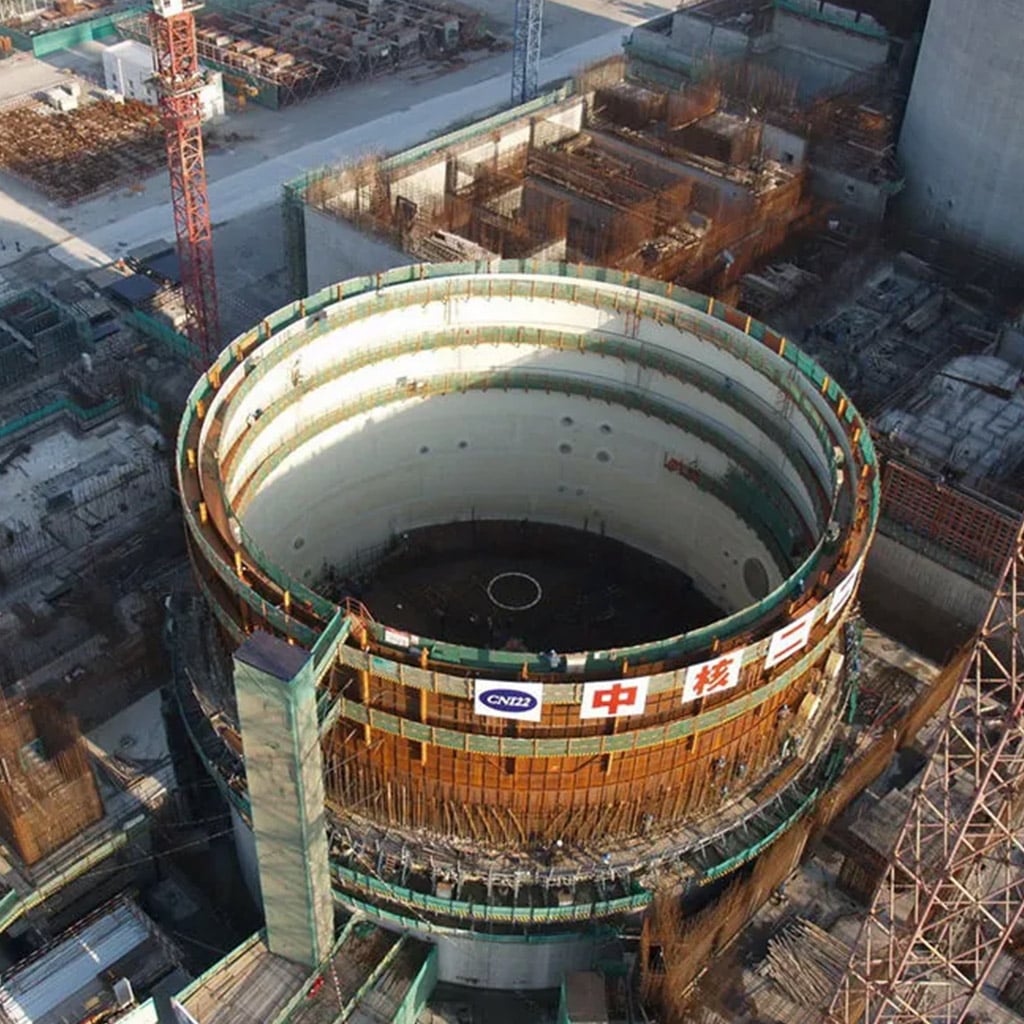

Our products can applied to bridge rebar splice, Nuclear power engineering rebar splice, Seawater desalination rebar connection, LNG project rebar splice, Metro rebar connection, High tower rebar connection, Viaduct rebar connection and etc.
 |
 |
 |
Product parameters:
Diameter of steel bar(mm) |
Outer Diameter of coupler(mm) |
Inner diameter of coupler(mm) |
Length of coupler(mm) |
Dimension of thread(mm) |
12 |
20 |
11.9 |
30 |
M14*2.0 |
14 |
22 |
13.9 |
34 |
M16*2.0 |
16 |
26 |
17.4 |
40 |
M20*2.5 |
18 |
29 |
19.4 |
44 |
M22*2.5 |
20 |
32 |
20.9 |
48 |
M24*3.0 |
22 |
36 |
23.9 |
52 |
M27*3.0 |
25 |
40 |
26.3 |
60 |
M30*3.5 |
28 |
44.5 |
29.3 |
66 |
M33*3.5 |
32 |
50 |
31.8 |
72 |
M36*4.0 |
36 |
56 |
34.8 |
80 |
M39*4.0 |
40 |
62 |
40.3 |
90 |
M45*4.0 |
