Left&right Hand Coupler-Rib Peeling Type
*Rebar connection range: from 12mm to 40mm, equal to #4 to #12 British rebar size.
*We can also customize the coupler size according to your needs
- Overview
- Related Products
- Practical and economical alternative to laps.
- Simple process : Only one machine, one operator.
- Fast cycle time : less than 40seconds per thread !
- One standard coupler for all splicing requirements (Standard/Position).
- Easy installation, no torque wrench required.
- Shortens construction cycle times.
- Manufactured under strict quality assurance plan ISO 9001 and ASME. Third party tested.
- Full traceability of material origin and production batch.
Features:
Is parallel thread splicing system which is designed for Ø16 to Ø40mm（ASTM #5 to #12）rebar conneciton. Designed and produced in compliance with Eurocode 2, BS 8110, DIN 1045, ACI 318, IBC, AASHTO, ASME Sec III Div 2.

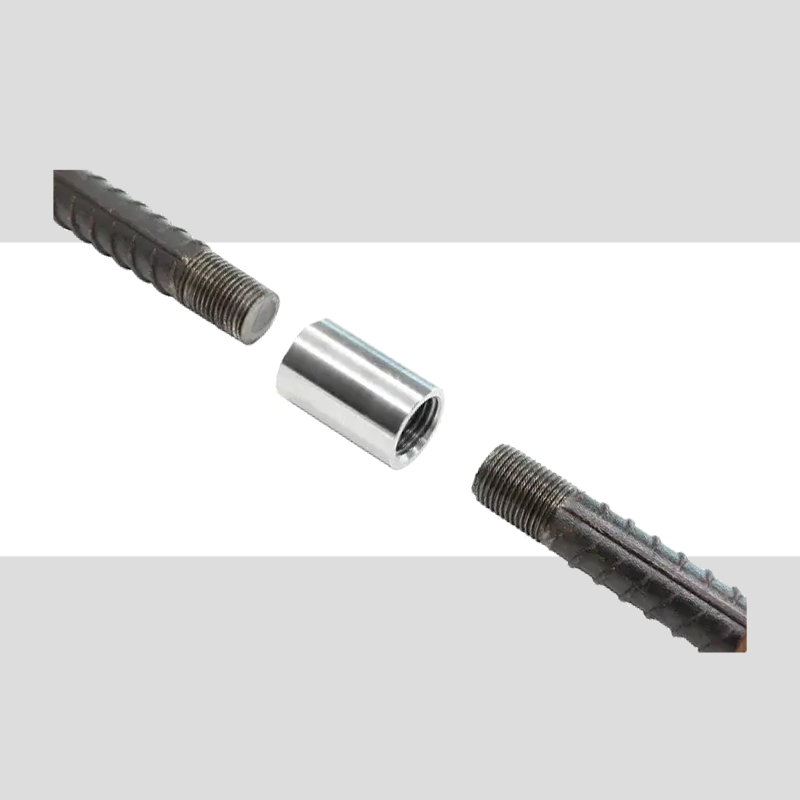

Positive and negative thread sleeve connection, this connection is suitable for projects where two or one steel bar cannot be rotated. The advantage is that only by rotating the sleeve, two steel bars can be connected at the same time. The thread of the steel bar is clockwise at one end and counterclockwise at the other end. The thread of the sleeve completely matches the steel bar. When rotating the sleeve, the two steel bars are tightened at the same time. The product specifications meet: 12mm-40mm steel bar connection range
Operation Video:
Advantage:
Installation guide：
1. Peeling:The end of the reinforcing bar is peeled.
2.Roll threading:The peeled end of the reinforcing bar is then threaded by rolling.
