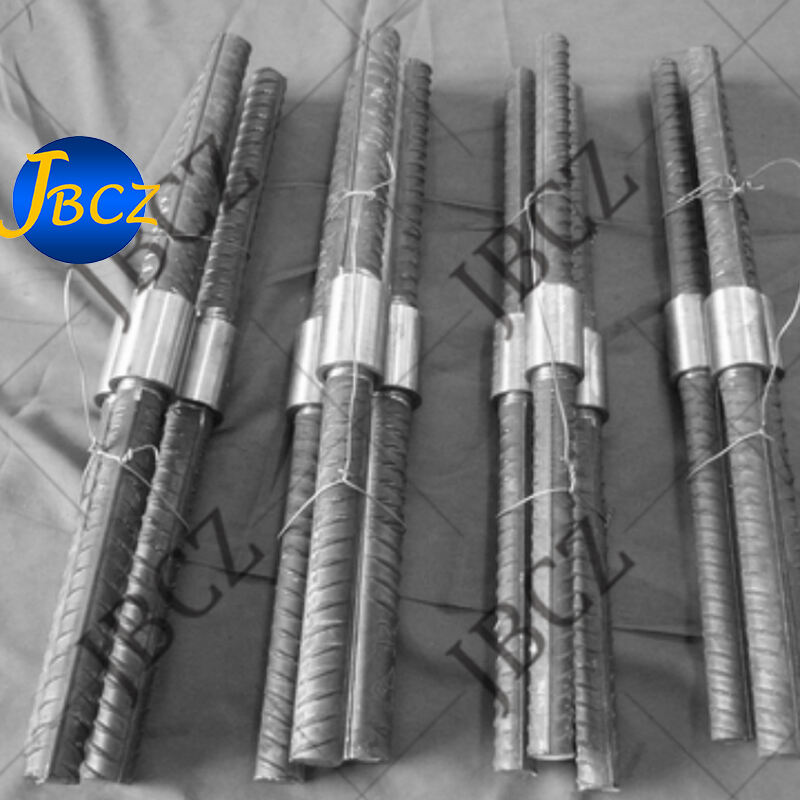

Left&right Hand Coupler-- Upset forging type
*Rebar connection range: from 12mm to 40mm, equal to #4 to #12 British rebar size.
*We can also customize the coupler size according to your needs
- Overview
- Related Products
- No reducing of rebar cross-sectional area
- Pass elongation test.
- Easy installation, no need torch wrench.
- One coupler can meet all connection requirement
- Manufactured under ISO 9001 standard and same strict quality guarantee. Tested by third party.
- Full traceability of raw material and production batch.
- Tested under several cyclic situation
- No bar conjunction problem happens.
- No large quantity of bars required.
Features:

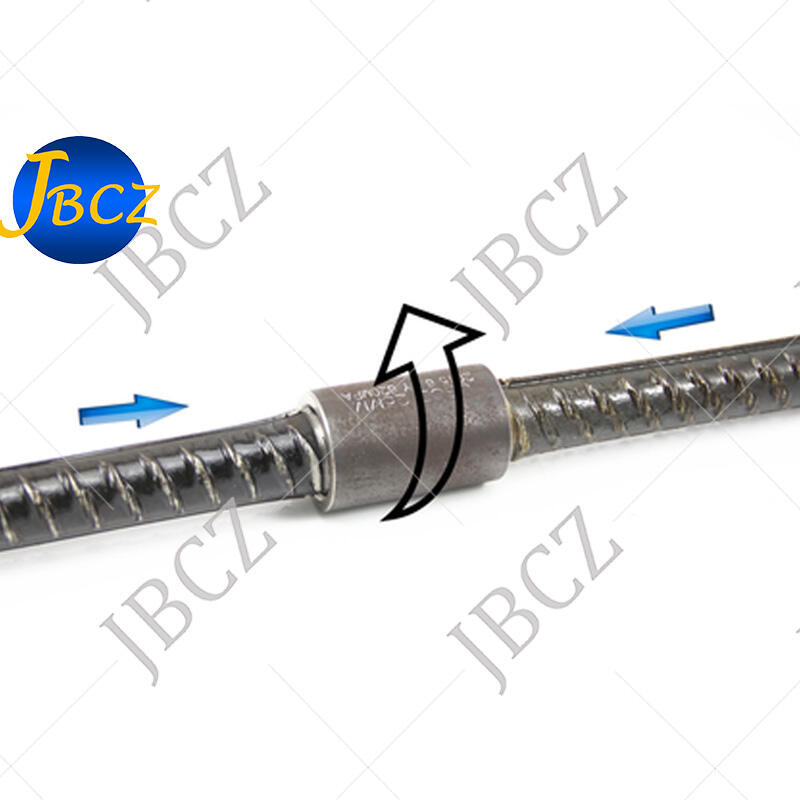

The two steel bars have been fixed and cannot be rotated. Using this positive and negative wire connection, you only need to rotate the sleeve to connect the two non-rotating steel bars at the same time.
Is a parallel thread splicing system which is designed for Ø12 to Ø40mm（ASTM #4 to #8）rebar connection. Designed and produced in compliance with Eurocode 2, BS 8110, DIN 1045, ACI 318, IBC, AASHTO, ASME Sec III Div 2
Operation Video:
Advantage:
Installation guide：

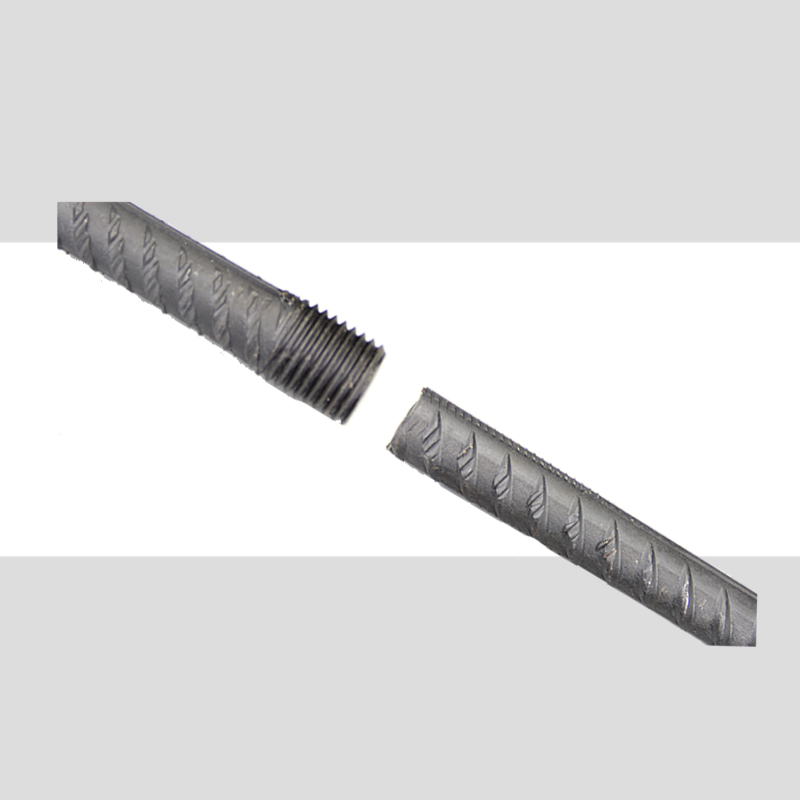

1. On two steel bars, threads in two different directions, clockwise and counterclockwise, are processed respectively;
2. JBCZ customizes positive and negative thread sleeves, 50% of the sleeves are clockwise threads and 50% are counterclockwise threads to match the steel bar threads in the first step
3. Rotate the sleeve to tighten the two steel bars at the same time, and easily complete the connection without rotating the steel bars and only rotating the sleeve
Product parameters:
Diameter of steel bar(mm) |
Outer Diameter of coupler(mm) |
Inner diameter of coupler(mm) |
Length of coupler(mm) |
Dimension of thread(mm) |
12 |
20 |
11.9 |
30 |
M14*2.0 |
14 |
22 |
13.9 |
34 |
M16*2.0 |
16 |
26 |
17.4 |
40 |
M20*2.5 |
18 |
29 |
19.4 |
44 |
M22*2.5 |
20 |
32 |
20.9 |
48 |
M24*3.0 |
22 |
36 |
23.9 |
52 |
M27*3.0 |
25 |
40 |
26.3 |
60 |
M30*3.5 |
28 |
44.5 |
29.3 |
66 |
M33*3.5 |
32 |
50 |
31.8 |
72 |
M36*4.0 |
36 |
56 |
34.8 |
80 |
M39*4.0 |
40 |
62 |
40.3 |
90 |
M45*4.0 |
